How To Create a Self-Signed SSL Certificate for Apache in Ubuntu Virtual Cloud Server

How To Create a Self-Signed SSL Certificate for Apache in Ubuntu Virtual Cloud Server

In this blog we will generate self signed SSL certificate for one demo website in Ubuntu server.

Virtual Cloud Server Details

Just now i have deployed a new server in Vultr cloud server. My server details are:

Location: New Jersey
OS: Ubuntu 20.04 x64
IP Address:
Username: root
Password: •••••••

If you are new to Vultr cloud server, you can see following link and deploy a new server.

Deploy a New Virtual Server in Vultr and How to Use SSH to Connect to Remote Server

Install Apache Web Server and Enable Required Module in Ubuntu Server

sudo apt-get update sudo apt-get install apache2

You can find detail blog on how to install apache2 webserver in ubuntu virtual server.

Install Apache2 Web Server in Ubuntu Virtual Server

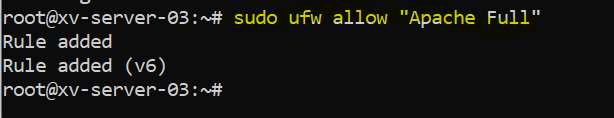

Open firewall for http and https

sudo ufw allow "Apache Full"

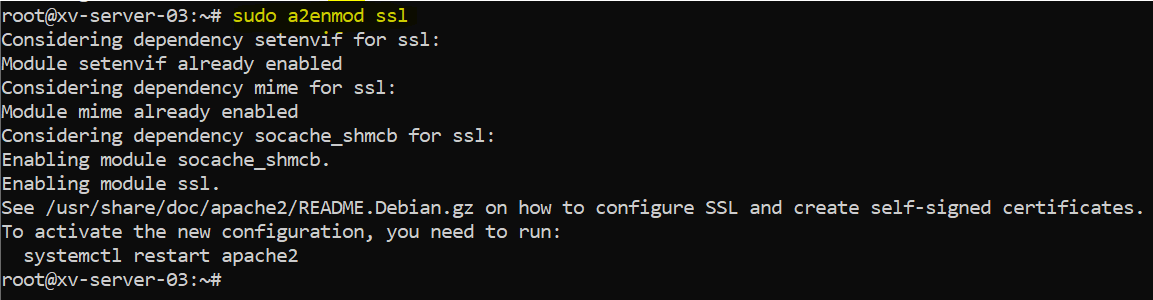

Enable mod_ssl module

mod_ssl is already installed by default in Ubuntu. We just need to enable with the following command.

sudo a2enmod ssl

Need to restart apache2 service.

systemctl restart apache2.service

Check in browser

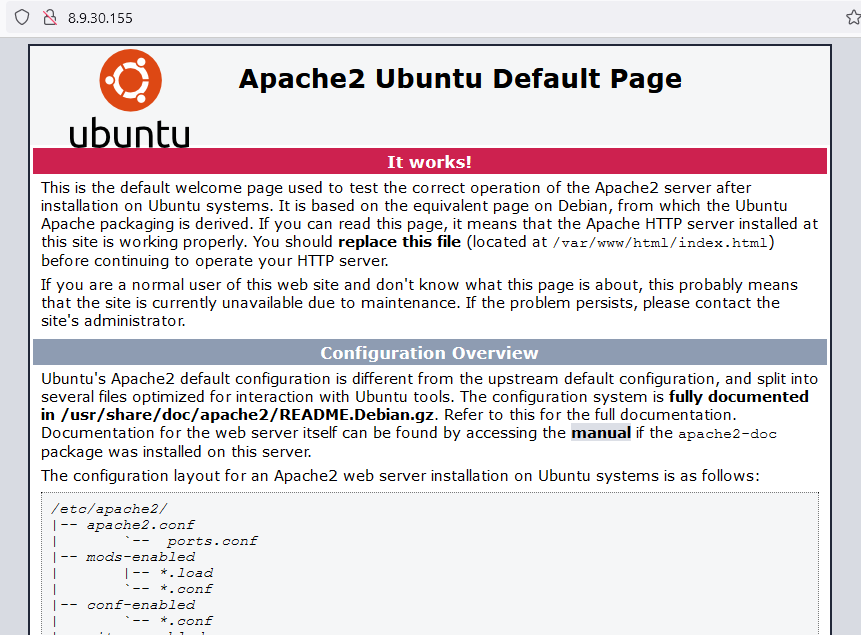

You should get the Apache default page like showing below:

Install OpenSSL

OpenSSL is a library that provides cryptographic functionality to applications such as secure web servers. Before installtion let us check OpenSSL is installed on a Ubuntu server or not.

openssl version

It is already installed in Ubuntu server, so no need to install.

Create SSL certificate for sample website

I want to generate SSL for sample site So keeping name apache-xvdemo-selfsigned for .key and .crt file. You can select name according to your choice.

Run the following command, to create .key and .crt files:

sudo openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /etc/ssl/private/apache-xvdemo-selfsigned.key -out /etc/ssl/certs/apache-xvdemo-selfsigned.crt

This command generates a new private key (-newkey) using the RSA algorithm with a 2048-bit key length (rsa:2048) without using a passphrase (-nodes) and then creates the key file with a name of apache-xvdemo-selfsigned.key (-keyout apache-xvdemo-selfsigned.key). Also that generates the CSR with a filename of apache-xvdemo-selfsigned.csr (-out apache-xvdemo-selfsigned.csr).

req -x509 parameter specifies that we want to use X.509 certificate signing request (CSR) management. An X.509 certificate is a digital certificate, which defines the format of public key infrastructure (PKI) certificates. They are used to manage identity and security in internet communications and computer networking.

-days 365 option to sets the length of time that the certificate will be considered valid.

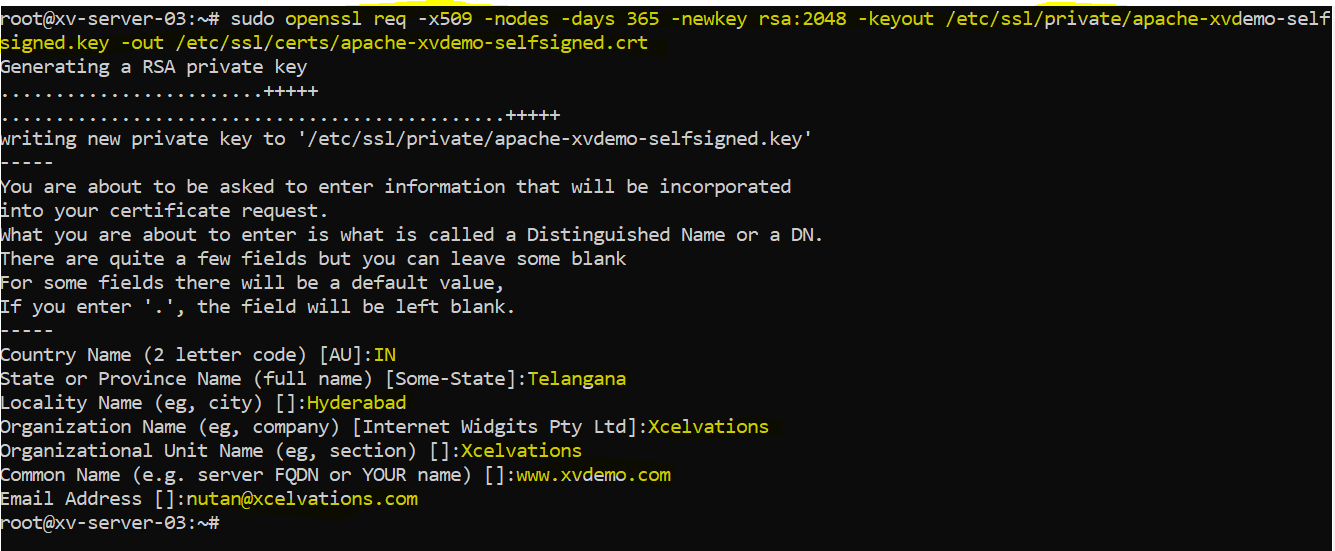

It will ask you to enter

Country Name: you have to enter country code, where your company is legally located
State: enter state name, where your company is legally located
Locatity Name: enter locality name, where your company is legally located
Organization Name: you can enter your organization/company name
Organization Unit Name: you have to enter your sub-organization name
Common Name: You have to enter hostname or domain name which will be use to access the server by or public IP of the server.
Email Address: you have to enter your email address.

Now successfully created .key and .crt file. If you want to see you can go to following directory and see.

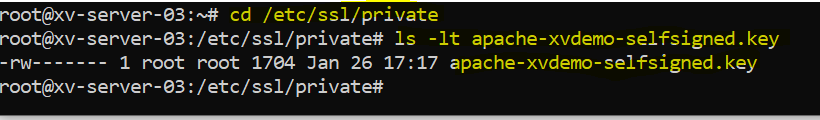

View .key file

cd /etc/ssl/private

ls -lt apache-xvdemo-selfsigned.key

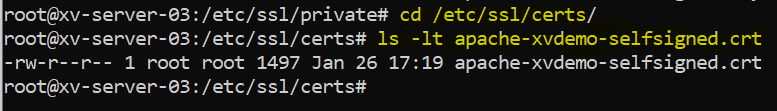

View .crt file

cd /etc/ssl/certs/

ls -lt apache-xvdemo-selfsigned.crt

Create sample demo website

Create directory for sample website

cd /var/www/



Create index.html file inside /var/www/ and write following code in that:

touch index.html

vi index.html

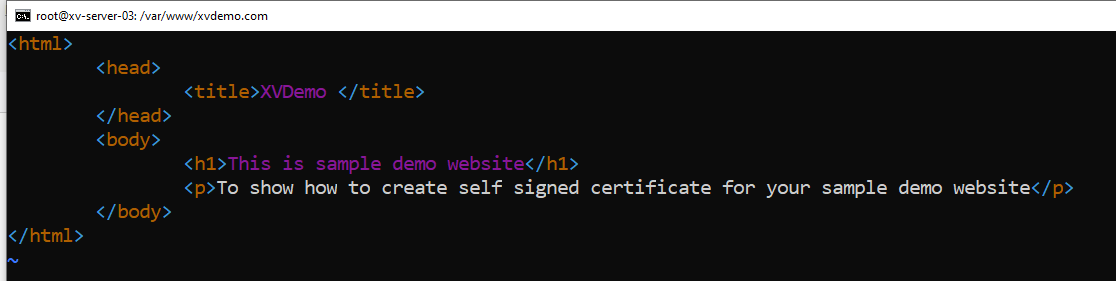

vi index.html command will open index.html file in vi editor, press i to insert in vi editor. Then paste following line of code.

XVdemo Home

This is sample demo website

To show how to create self signed certificate for your sample demo website

Save and exit vi editor, press Esc key then :wq and press enter.

Create Virtual Host for

Go to the following directory and create apache configuration file

I am keeping name xvdemo, you can keep according to your choice.

cd /etc/apache2/sites-available

vi xvdemo.conf

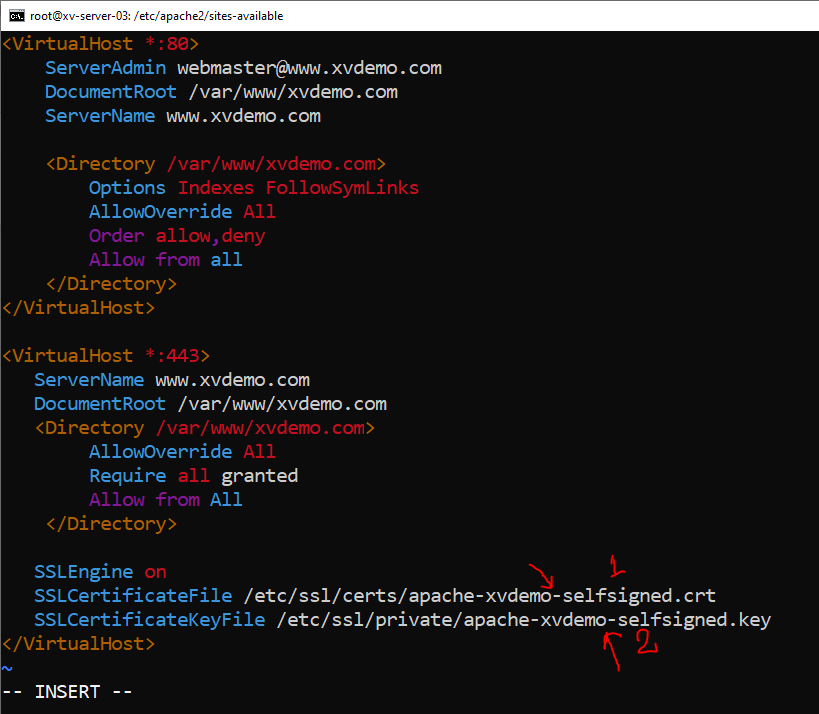

Add following line of code in xvdemo.conf

Make sure server name matches the Common Name which we have written when were creating the certificate. Also write the correct SSLCertificateFile and SSLCertificateKeyFile.

<VirtualHost *:80>


DocumentRoot /var/www/


<Directory /var/www/>

    Options Indexes FollowSymLinks

    AllowOverride All

    Order allow,deny

    Allow from all



<VirtualHost *:443>


DocumentRoot /var/www/

<Directory /var/www/>

    AllowOverride All

    Require all granted

    Allow from All


SSLEngine on

SSLCertificateFile /etc/ssl/certs/apache-xvdemo-selfsigned.crt

SSLCertificateKeyFile /etc/ssl/private/apache-xvdemo-selfsigned.key


Save and exit the vi editor.

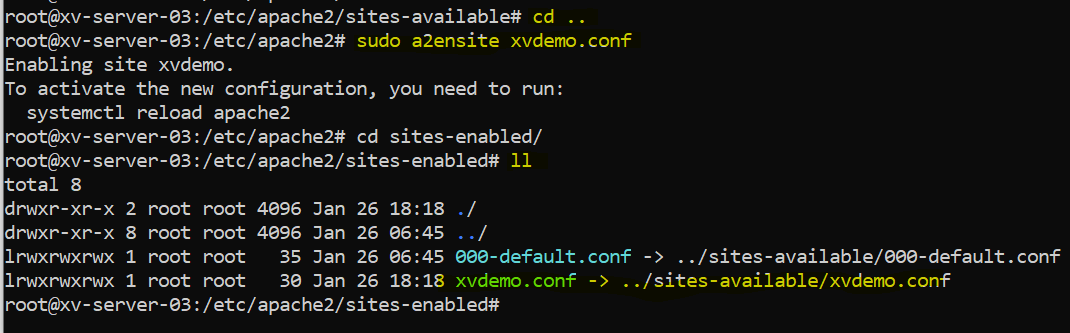

Enable the apache configuration file

cd .. sudo a2ensite xvdemo.conf

cd sites-enabled ll

Restart apeche

systemctl reload apache2

Make hosts entry in your local system

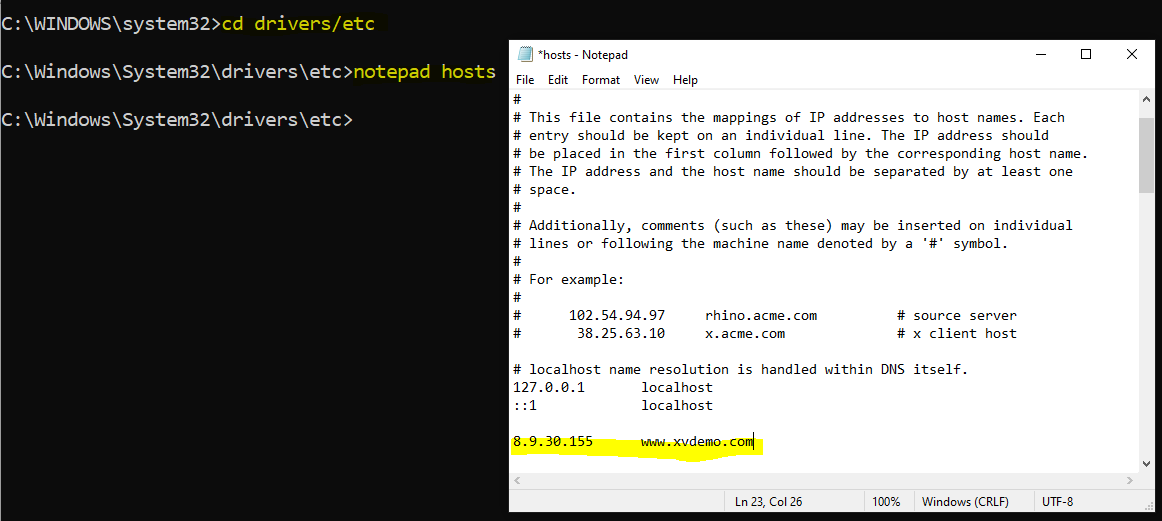

Open command prompt as administrator. Then go to following directory and open hosts file.

cd drivers/etc

notepad hosts

Add below line in hosts file.


Save and close the file.

Check server name in browser

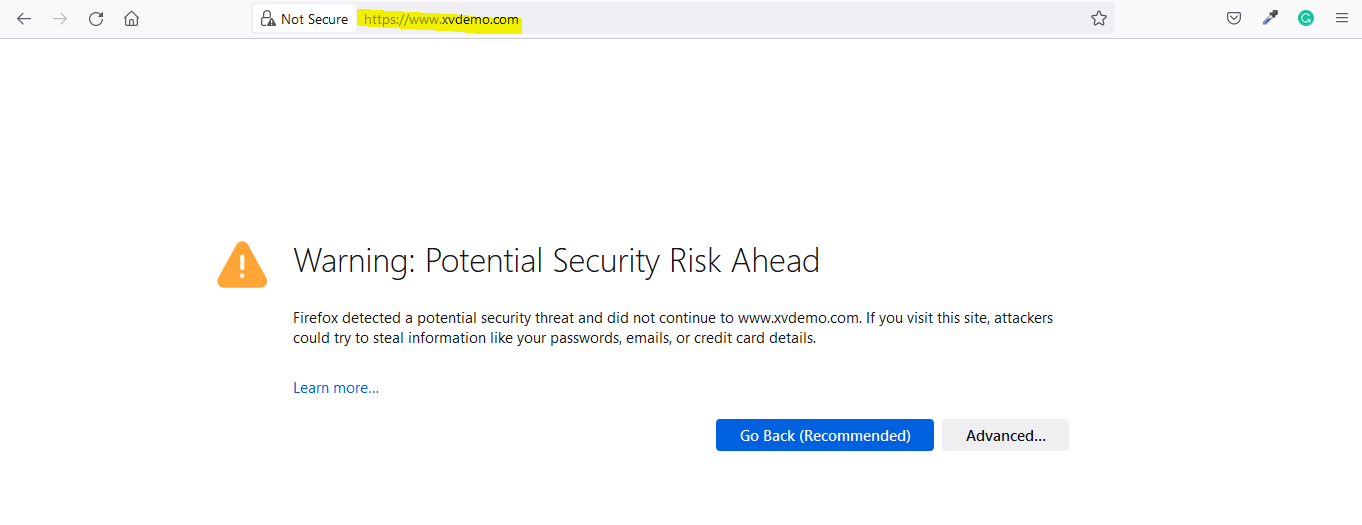

You will get screen like below.

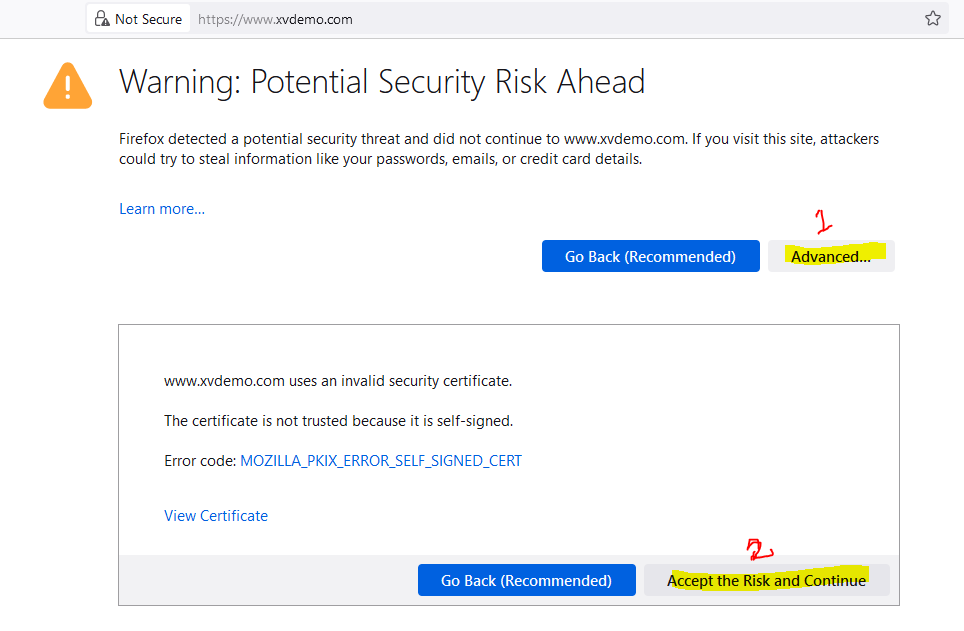

You have click on "Advanced" -> Click on "Accept the Risk and Continue".

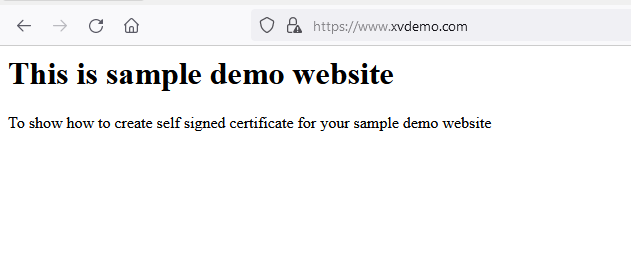

After that you can see the sample demo website.

That's it.
